The only bronchoscopy platform using shape sensing

Ion by Intuitive takes a novel approach to navigation with fiber optic shape-sensing technology. Embedded within Ion’s ultra-thin catheter, the shape sensor measures the full shape of the catheter hundreds of times per second,¹ providing precise location, shape, and orientation information throughout the entire navigation and biopsy process.¹ With shape sensing, Ion provides the precision and stability needed to reach and biopsy small nodules in the periphery of the lung.²

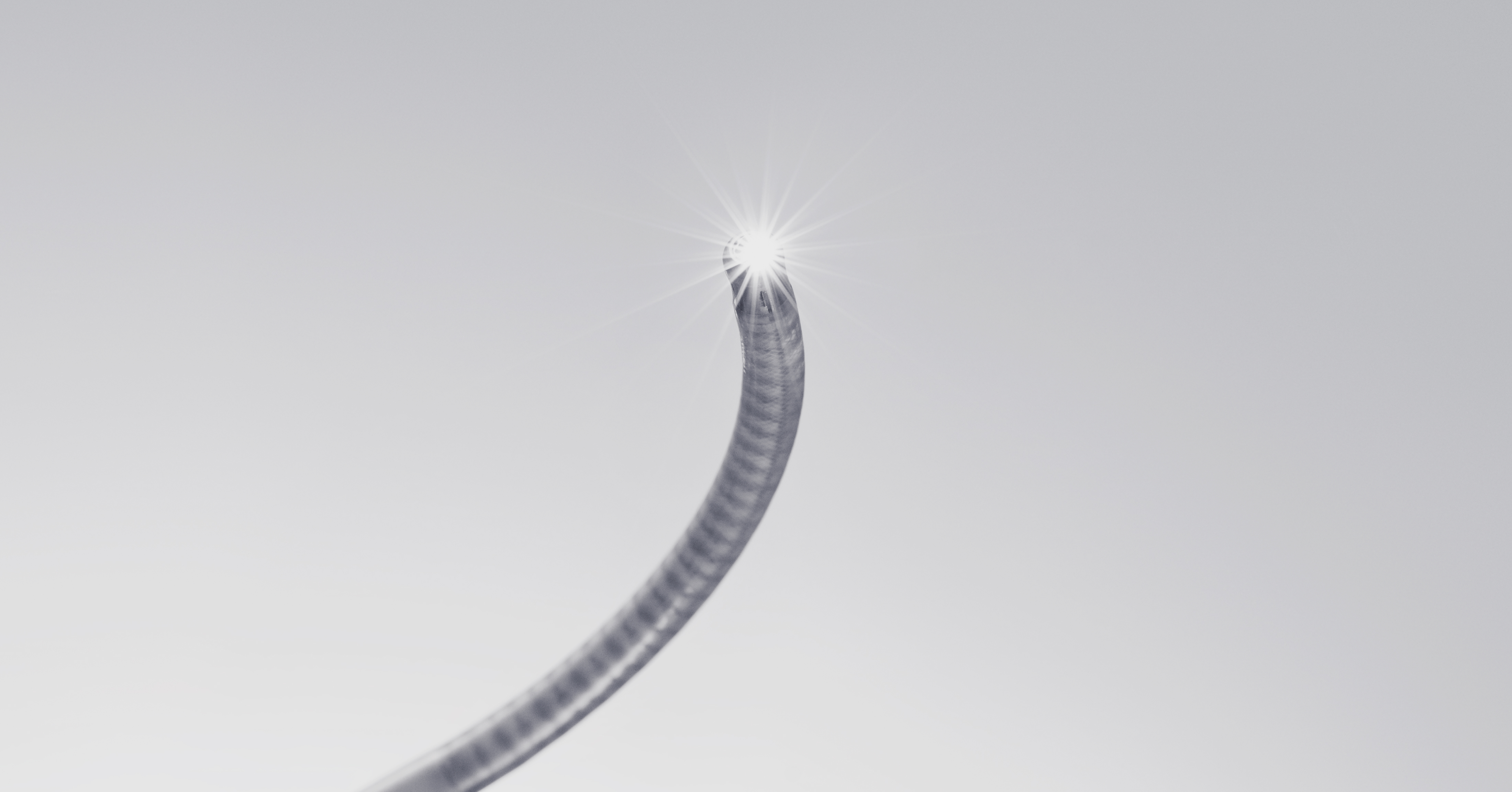

Ion catheter with fiber optic shape sensing for bronchoscopy

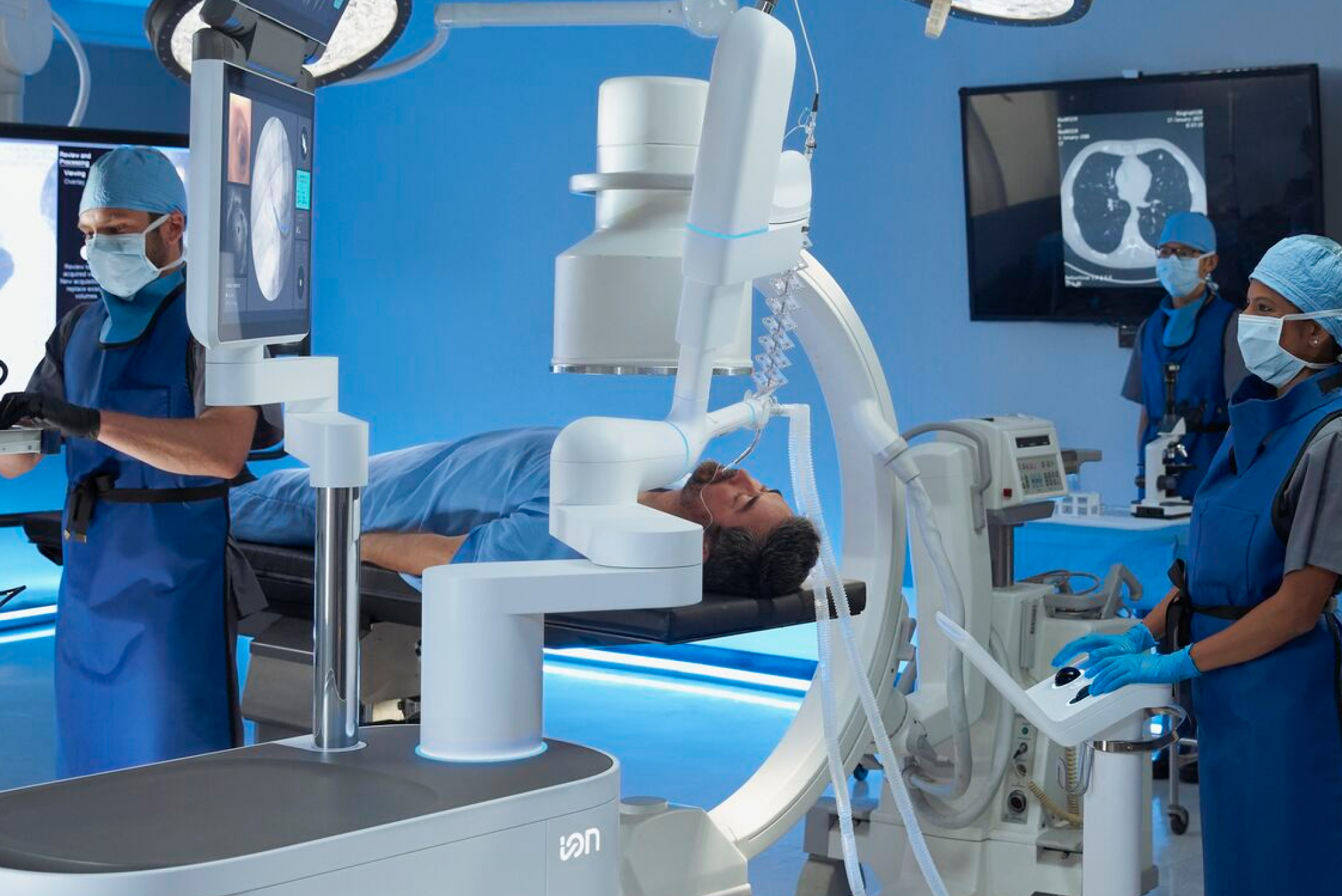

A departure from electromagnetic navigation

Ion is designed for navigation and biopsy without potential electromagnetic (EM) interference. Ion’s fiber optic shape sensor is not sensitive to nearby metal objects and is inherently immune to EM interference.³ With shape sensing there’s no need for an EM generator, patient sensors, and room mapping.¹ And since Ion's navigation is not affected by fluoroscopy or cone beam computed tomography (CBCT), there is no need to move fluoroscopy away during a procedure.¹

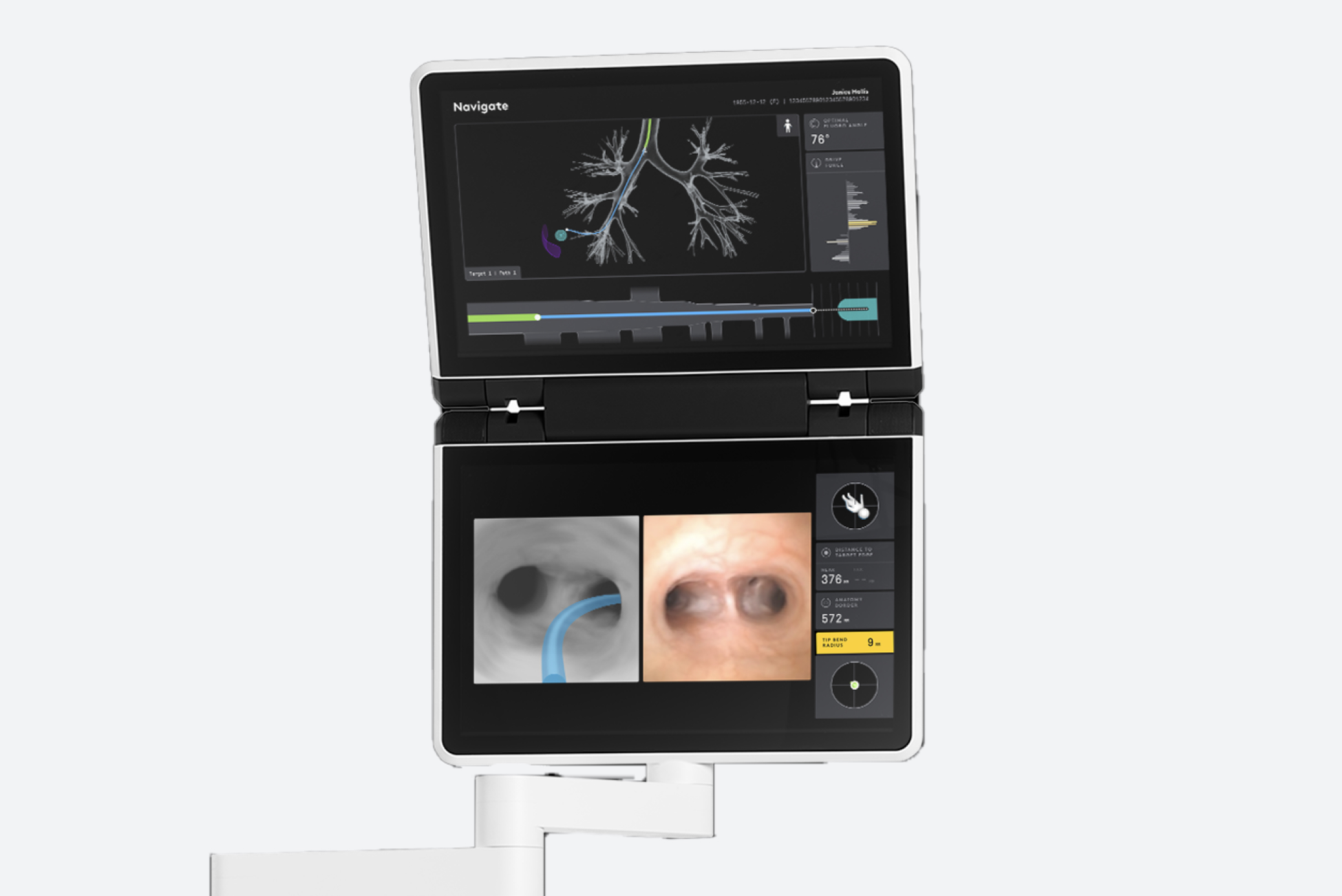

Ion visualization with two navigation views showing position

Visualization two ways

Ion displays a complete view of the catheter in the airway via a 3D real-time visualization of the entire catheter, enabled by shape-sensing technology. And Ion provides 2D direct visualization through the vision probe at the tip.¹ The camera and biopsy tools share the same channel, which preserves the catheter’s ultra-thin¹ outer diameter—critical for navigating small pathways and tight bends.⁴ Real-time shape sensing provides visual positioning and orientation that help guide navigation and biopsy.

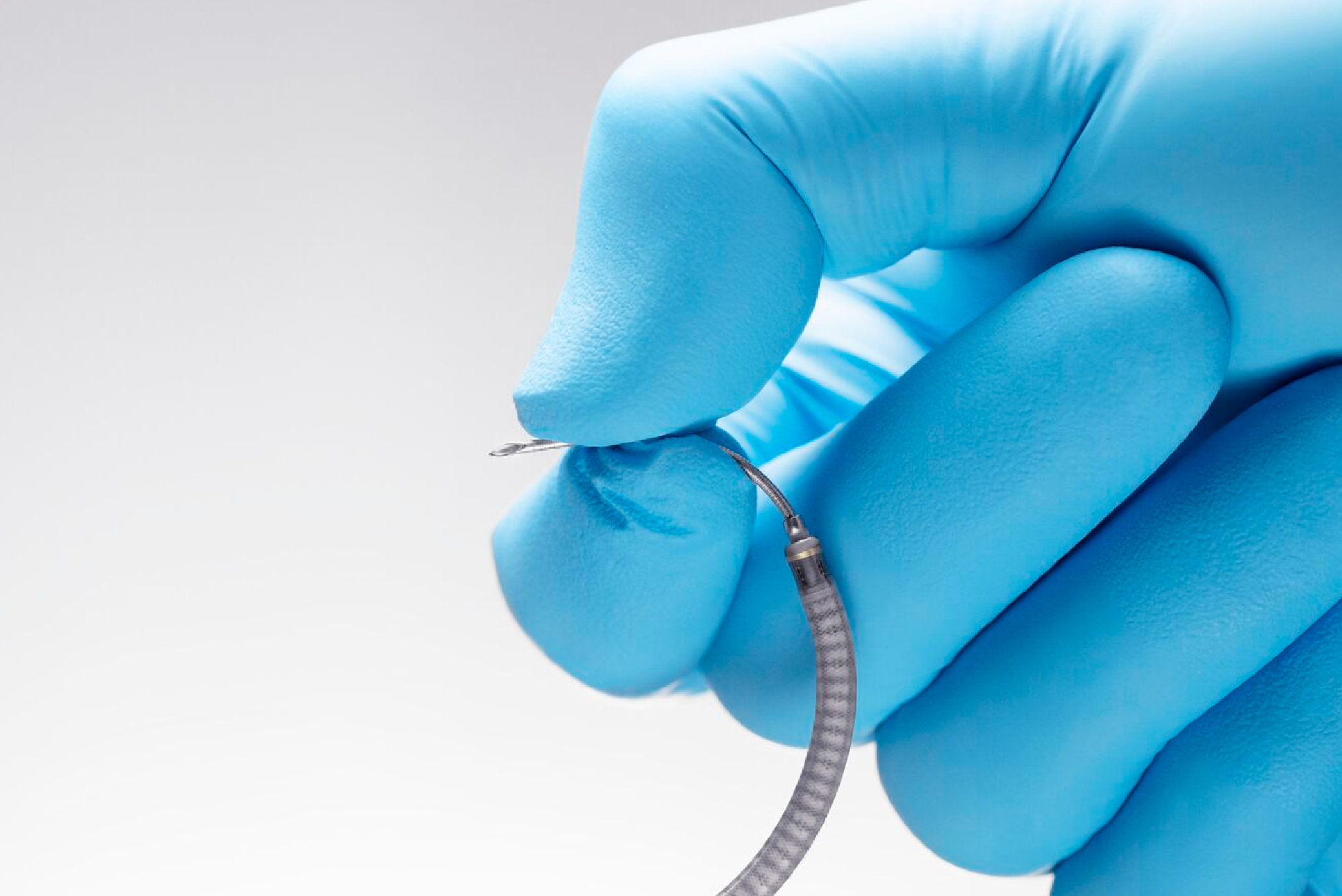

Hand holding the tip of the thin flexible Ion biopsy needle

Reach, flexibility, and stability

Ion balances flexibility with stability in the hard-to-reach periphery.² The thin fiber optic shape sensor is embedded in a 3.5 mm outer diameter catheter wall with a 2 mm working channel.¹ The catheter can articulate 180° in any direction,¹ responding to the physician’s movement of Ion’s track ball and scroll wheel.¹ Combining real-time shape-sensing measurements with robotic control algorithms allows the Ion catheter to hold its position once the target nodule is reached.¹
